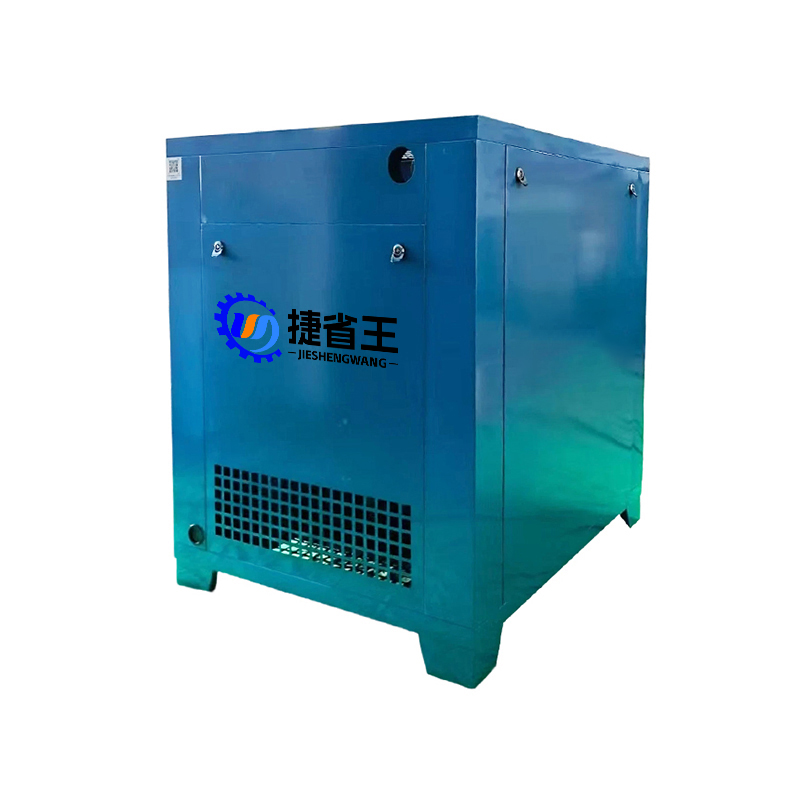

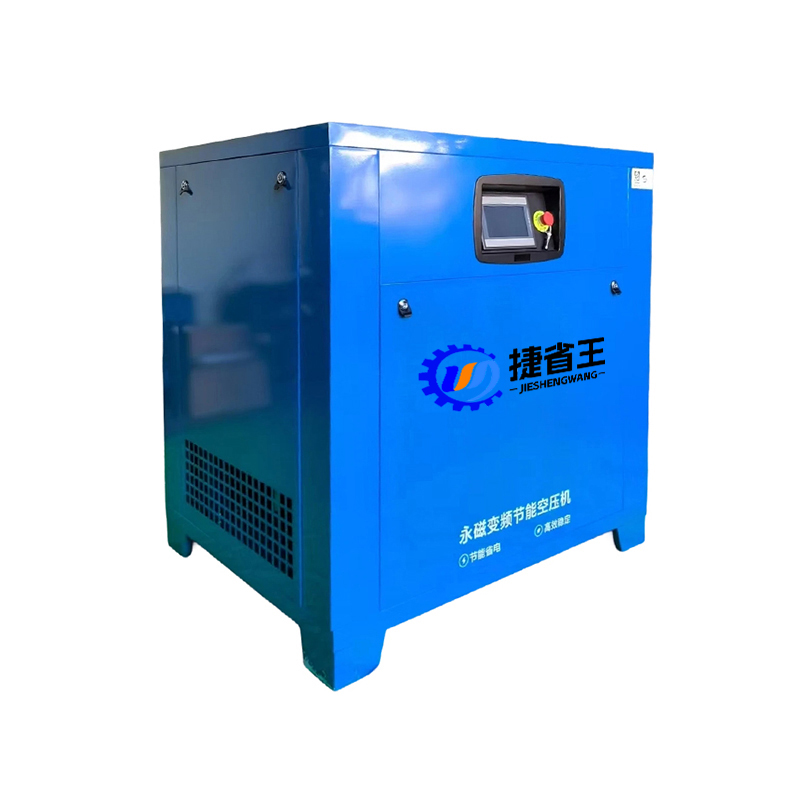

20A, 30A, 50A, 75A 100A Permanent Magnet Variable Frequency Air Compressor
20A, 30A, 50A, 75A, 100A-
Model
20A
30A
50A
75A
100A
Length (mm)
950
1000
1200
1600
1600
Width (mm)
750
800
950
1100
1100
Height (mm)
1010
1180
1180
1480
1490
Weight (kg)
360
500
400
960
1100
Constant pressure (bar)
6～10
6～10
6～10
6～10
6～10
Exhaust volume (m3/min)
2.64-1.87
4.42～3.06
7.39～5.41
11.92～9.41
15.42-11.67
Energy efficiency rating
Level 1
Level 1
Level 1
Level 1
Level 1
Exhaust oil content (PPM)
≤ 3
≤ 3
≤ 3
≤ 3
≤ 3
Noise power level dB(A)
≤ 62
67
67
75
80
Air outlet temperature (℃)
≤ Ambient temperature +10
≤Ambient temperature +10
≤ ambient temperature +10
≤ ambient temperature +10
≤Ambient temperature +10
Outlet size
G1”
G11/4 pipe thread
G1 1/2” pipe thread
G21/2” pipe thread
RP2 1/2” pipe thread
Cooling method
Air cooling
Air cooling
air cooling
air cooling
Air cooling
Transmission method
Integrated
Integrated type
integrated
integrated
Integrated
Starting method
Frequency conversion synchronization
Frequency conversion start
frequency start
frequency start
Frequency start
Power (kw)
15KW
22
37
55
75
Speed(r/min)
3000
Voltage (V)
380
380
380
380
380
Frequency (HZ)
200
